How does the initial cooling time affect the quality of frozen products?

How does the initial cooling time affect the quality of frozen products?

In cold chain and quick-freezing processes, the initial cooling time — the period from when a product is finished (off the line / out of the oven) until it reaches the freezing zone and begins to cool significantly — directly determines the starting quality of the freezing process. This time window affects ice crystal formation, cell structure integrity, nutrient retention, and microbial activity, and ultimately influences the product’s texture, appearance, and shelf stability. For manufacturers, understanding and optimizing initial cooling time can both improve product quality and reduce waste and operating costs.

1. What is Initial Cooling Time? Definition and Measurement

Initial cooling time generally includes two parts:

  1. Pre-cool / Arrival Time: The time from the production end point (out of the oven, off the slicer, finished washing) until the product enters the freezing equipment and begins to be cooled.
  2. Critical Freezing Zone Transit Time: The time from the start of surface ice formation to when the product’s core temperature passes through the “maximum ice-crystal formation zone” (approximately −1°C to −5°C) and enters stable freezing.

Measurement is done using core temperature probes and surface temperature sensors with timestamps. The control goal is to minimize both intervals, with special emphasis on quickly passing through the critical ice-crystal zone.

2. Physical and Biological Mechanisms: How the Initial Time Determines Microstructure

The key reason initial cooling time affects product quality is ice crystal morphology and tissue damage. With slow cooling, water crystallizes between cells and forms large, uneven ice crystals that rupture cell membranes and cause fluid loss. With fast cooling (short initial cooling time), ice crystals are finer and more uniform, preserving cell structure. Rapid cooling also suppresses enzyme activity and microbial metabolism, reducing chemical degradation of nutrients and flavor.

3. Specific Quality Attributes Affected by Initial Cooling Time

  1. Texture and Mouthfeel
    Short initial cooling time produces micro-ice crystals, reducing cell rupture; after thawing, water retention is better and mouthfeel is closer to fresh products. Long waiting times lead to loose tissue, coarse texture, and reduced chewiness.

  2. Drip Loss and Appearance
    Cell damage causes high drip loss after thawing, affecting weight, flavor and appearance. Shortening initial cooling time significantly reduces drip loss and preserves color, elasticity and surface integrity.

  3. Nutrient Retention
    Water-soluble vitamins (e.g., vitamin C, B vitamins) and some soluble proteins are prone to loss with cell fluid leakage. Rapid transit through the freezing zone suppresses enzyme activity and oxidation, improving nutrient retention.

  4. Flavor Compounds and Lipid Stability
    Rapid low-temperature fixation protects volatile flavor compounds and reduces oxidation. High-fat foods are more prone to lipid oxidation under slow cooling, causing off-flavors.

  5. Microbial Safety
    Shorter initial cooling time more quickly suppresses microbial activity, lowering the risk of growth in the temperature danger zone and improving food safety.

4. Key Factors That Influence Initial Cooling Time

Product factors

  • Thickness & shape: Thickness is critical — freezing time increases substantially with effective thickness.
  • Water content & composition: High water content and good thermal conductivity speed cooling; high sugar, high fat, coatings, or gelatinized layers slow cooling.
  • Initial temperature: Entering the freezer from room temperature versus from 0–4°C pre-cool makes a big difference.


Process & equipment factors

  • Cold source type: Liquid nitrogen freezing achieves much shorter initial cooling times than mechanical refrigeration, especially suitable for small batches and high-value products.
  • Heat transfer method: Efficiency differs greatly among spray, immersion, and air-phase heat transfer and directly affects cooling speed.
  • Arrangement & loading: Single-layer spreading cools faster than stacking or tight packing.

Operational management

  • Loading rhythm & logistics: The efficiency of handoff from production line to freezer determines pre-cool time.
  • Control & monitoring: Lack of real-time probes and records makes process variation hard to find and correct.

    5. Measurement and Control: How to Quantify and Manage Initial Cooling Time


    Necessary measurement tools

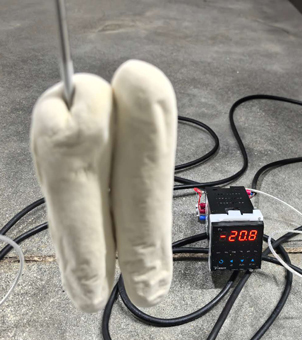

    • Core probes: Install temperature probes in representative samples to record core temperature curves in real time.
    • Surface temperature & IR: Monitor surface cooling and spray/air performance.
    • Data capture system: Record temperature, LN₂ flow (if used), conveyor speed, etc., for traceability and optimization.

    Critical control points (CCPs)

    • Inlet temperature & waiting time: Set a maximum allowed waiting time (for example ≤ 30 minutes or shorter depending on the product).
    • Transit time through the ice-formation zone: Use probe curves to judge crossing speed and set target slope or time thresholds.
    • Exit core temperature: Define a minimum core temperature at discharge (e.g., ≤ −18°C or ≤ −30°C) and verify it.

    Example quality KPIs

    • Average initial waiting time (minutes)
    • Transit time through the critical freezing zone (minutes)
    • Drip loss per batch (%)
    • Post-thaw sensory scores (texture, appearance)
    • Nutrient retention (e.g., % vitamin C retained)

    6. Practical Strategies: How to Optimize Initial Cooling Time on the Line

    Pre-cooling

    Briefly pre-cool hot products to 0–4°C before freezing; this shortens subsequent freezing time and reduces LN₂ or refrigeration energy use.

    Two-stage freezing (surface hardening + core cooling)

    Apply a short, intense surface hardening step to form a protective shell, then use a gentler step to lower core temperature — this balances appearance and internal freeze.

    Single-layer loading and proper spacing

    Keep products in a single layer with even spacing on trays or conveyors; avoid overlap and crowding to ensure full cold-medium contact.

    Reduce logistic dwell time

    Optimize plant layout to shorten the distance from production end to freezer inlet; use buffer chill tables or intermediate conveyors to cut waiting time.

    Choose the right cold source

    Match the cold source to product and capacity: LN₂ freezers or mechanical freezers. For ultra-quality or short-cycle small batches, LN₂ usually gives the shortest initial cooling time and the best quality retention.

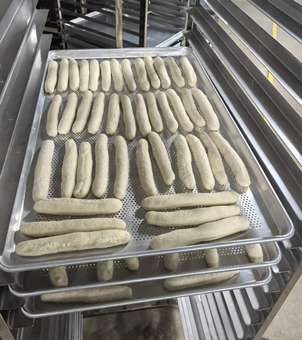

    • Liquid Nitrogen Freezer for Frozen Dough
    • Liquid Nitrogen Freezer for Frozen Dough
    • Liquid Nitrogen Freezer for Frozen Dough



    7. Quality Testing & Validation: How to Prove Optimization Works

    • Set up pilot-to-production validation:
    • Small-batch trials: Test different pre-cool times and methods, record core temperature curves and transit times.
    • Sensory & physico-chemical tests: After thawing, measure drip loss, texture (shear/chew), color difference, TBARS (lipid oxidation), vitamin retention.
    • Repeat across batches: Ensure results are consistent across climates and raw material variability.
    • Set acceptance standards: Define pass/fail thresholds for key metrics and create SOPs.

    8. Common Misconceptions and Pitfalls to Avoid

    Myth 1: Faster is always better

    Overdoing surface hardening can crack crusts or break coatings. Use a two-stage approach to protect product integrity.

    Myth 2: Only check exit temperature

    Relying solely on exit temperature ignores the rate of crossing the maximum ice-crystal zone. Always use core temperature curves and transit time metrics.

    Myth 3: Ignore packaging and thawing

    Even with optimized initial cooling, wrong packaging or rough thawing can negate quality gains. The whole cold chain must be coordinated.

    9. Cost vs. Benefit: Why Investing in Shorter Initial Cooling Time Pays Off

    Shortening initial cooling time yields direct and indirect benefits: lower drip loss and returns, improved appearance and texture, access to higher-value markets, higher sell-through rates and longer shelf life. Although instantaneous cooling may increase peak cold-source usage (e.g., higher LN₂ flow briefly), overall manufacturing cost is often offset by reduced losses and higher product value—delivering attractive long-term ROI.

    10. Implementation Checklist: Technology and Management Steps

    • Set targets: Define pre-cool time and critical transit time targets by product.
    • Select equipment: Choose LN₂ or mechanical freezers per capacity and product; optimize nozzle and airway layout.
    • Build process maps: Develop a temperature-curve database for representative products.
    • SOP & training: Standardize pre-cool, loading, unloading and packaging procedures; train staff.
    • Monitoring: Install probes, data logging and alarms to track core temperature and line dwell.
    • Pilot validation: Use pilot data to set production parameters and continuously improve.

    11. Conclusion: Initial Cooling Time Is the First Quality Control Gate

    Initial cooling time has a measurable, profound impact on frozen product quality. Reducing and stabilizing this time window controls ice-crystal formation at the micro level, improves texture, appearance and nutrient retention at the macro level, and reduces microbial risk and downstream losses. Companies should include initial cooling time in their quality management systems and optimize it through equipment, process and management measures to achieve sustainable quality and economic advantages in a competitive cold-chain market.

    SPEEDCRYO — as a supplier of LN₂ freezing equipment and cold-chain solutions — can support customers with equipment selection, line layout, pre-cooling strategies and pilot validation to turn theoretical optimization into repeatable, controlled production capability. For product-specific trials and tailored process development, please contact our technical team for customized support and testing services.
